Digital signal input types:
1.Dry contact input
2.Wet contact input
3.Open collector input
4.TTL / CMOS level, 24V level input
Product List:
Type No.: WJ62-485 (input:8-ch digital signal,output:485 interface)
Type No.: WJ62-232 (input:8-ch digital signal,output:232 interface)

WAYJUN WJ62 series 8-ch DI Isolated Digital Signal to RS485/232 data acquisition module,Slim-line plastic housing with integral 35mm DIN rail mounting , terminals,power supply(8-32VDC)

Features:
>> Eight channels isolated digital signal input,isolated RS-485/232 output
>> Each input channel isolation
>> Input/output:3000VDC isolation
>> Over voltage protection,reverse polarity protection
>> Can read level status of each channel via the RS-485/232 interface
>> 3000VDC isolation between input and output
>> Wide power supply range: 8 ~ 32VDC
>> High reliability, easy programming, easy application
>> DIN35 Rail-mounted
>> Can programme setting module address,baud rate
>> Support Modbus RTU communication protocol
>> Dimensions: 120 mm x 70 mm x 43mm
Applications:
>> level signal measurement, monitoring and control
>> RS-485 remote I / O, data acquisition
>> Intelligent building control, security engineering applications
>> RS-232/485 bus in industrial automation control system
>> Industrial signal isolation and long-term transmission
>> Equipment operation monitoring
>> Sensor signal measurement
>> Industrial data acquisition and recording
>> Medical, industrial product development
>> Switching signal acquisition

Product Overview:

WAYJUN WJ62 series products realize the signal acquisition between sensor and host, to measure the switching signal. WJ62 series can be used in RS-232/485 bus industrial automation control system,switching signal measurement, monitoring and control, high and low leveal signal measurement,industrial field signal isolation and long-term industrial transmission and so on.

Products include power supply isolation, signal isolation, linearization, A/D conversion and RS-485 serial

communication. Each serial interface can connect up to 255 pieces WJ62 Series modules, communication using ASCII

code or MODBUS RTU communication protocol, and its instruction set compatible with the ADAM modules, baud rate

can been set by the code, with other manufacturers control module hang in the same RS-485 bus for easy programming.

Footprint Function:

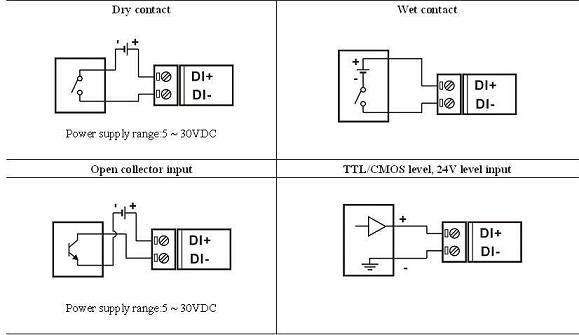

Switch signal input wiring diagram:

more details,please check: http://www.wayjun.net/Datasheet/Signal/WJ62%20series%20Converters.pdf
