WAYJUN 4-ch DI 4-ch Relay Output, RS485/232 Remote Data Acquisition Module I/O(WJ70 Series)
WJ70 - □
Communication Interface
485: output is RS-485 interface
232: output is RS-232 interface
Sample 1: part No.: WJ70-232 means output is RS-232 interface
Sample 2: part No.: WJ70-485 means output is RS-485 interface

Features:
>> Four switch input, four relay output
>> Can read input level status via the RS-485/232 interface
>> Can set output state via the RS-485/232 interface
>> Input/output/power supply: three-isolation
>> Isolation between each input,isolation between each output
>> Wide power supply range: 8 ~ 32VDC
>> High reliability, easy programming, easy application
>> DIN35 Rail-mounted
>> Can programme setting module address,baud rate
>> Support Modbus RTU communication protocol
>> Dimensions: 120 mm x 70 mm x 43mm

WJ70 General parameters:
(typical @ +25 ℃, Vs is 24VDC)

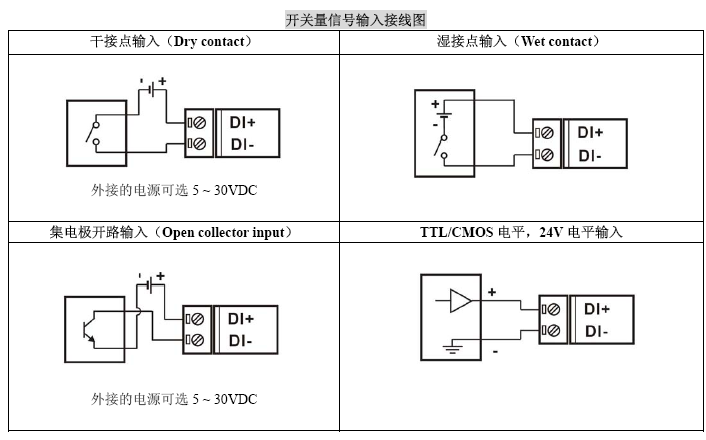

Input type: switch input,4 channels (DI0~DI3)
Low level: input <1V
High level: input 4 ~30V
Input Resistance: 3KΩ
Output type:C type relay signal output,4 channels (DO0~DO3) .Normally open/normally closed and public
Contact load capacity: 1A 125VAC or 2A 30VDC .
Contact form: 2Z
Maximum switching voltage: 240VAC / 120VDC
Maximum switching current: 2A
Communication: RS-485 protocol or RS-232 standard characters protocols and MODBUS RTU communication protocol

Download Datasheet :http://www.wayjun.net/Datasheet/Signal/WJ70%20series%204-ch%20DI%204-ch%20Relay%20Output%20Converters.pdf
