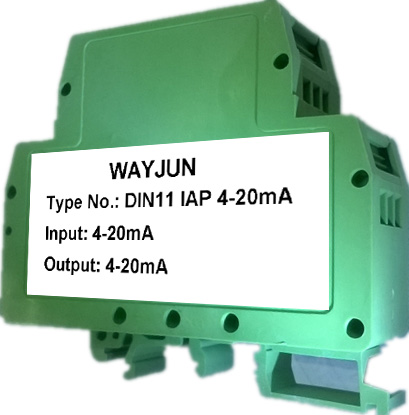

4-20mA to 4-20mA passive signal converters

DIN11 IAP 4-20mA is a signal isolated converter, contains current signal modulate-demodulate and isolated coupled
circuit. To meet the requirements of long distance transmission with little distortion, only little equivalent
resistance enables a wide input range of the IC input available. To meet the requirements of 3KVDC isolation,
the wider operating temperature range, humidity and quiver, we adopt the fully SMT ceramic PCB, printed
resistor techniques and the latest techniques.

Features:
>>No power supply need
>>Accuracy Grade:0.1/0.2
>>International standard input current signal:0-10mA/0-20mA/4-20mA
>>Standard current signal output:0-10mA/0-20mA/4-20mA
>>High linearity (nonlinearity<0.2%)
>>We have calibrated, the user can use directly.
>>DIN35 Rail-mounted

Part No. Input Signal Output Signal
DIN11 IAP 0-10mA 0-10mA 0-10mA

DIN11 IAP 0-20mA 0-20mA 0-20mA

DIN11 IAP 4-20mA 4-20mA 4-20mA

MAXIMUM RATINGS
Continuous Isolation
Voltage
3000Vrms
Vin 32V
Junction Temperature +85℃
Storage Temperature +150℃
Lead Temperature +300℃
Output Short to Common Continuous

Wiring Diagram:

more details,please check:http://www.wayjun.net/index.php?main_page=product_info&cPath=2&products_id=15
